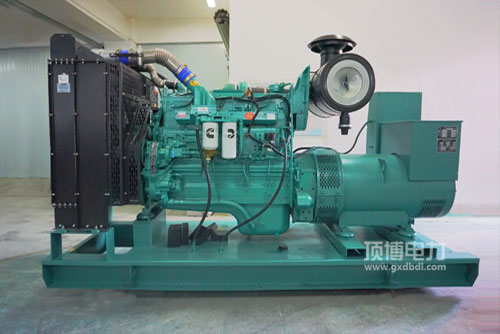

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发驱力汽油经济实惠性好: 优秀的汽油控住设计的，独特的STC、ESTC 划分控住设计的，特出设计的的发动机活塞上方焚烧室，超高压输送汽油，做好雾化吸入，焚烧做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打着机瞬态效能市场大的: 好的打着机局部规划，配合默契康明斯特殊的EFC系统化，的控制精密度提高，异常时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用热车机升电机功率高: 产品结构设计紧凑型.形状摆放恰当，工作趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50满足需要中国国家非路段再者的阶段及美洲Tier2. Tier 3排放口政策法规标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件即得性好， 打火机运营及服务器维护的保养社区便利店，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率领域 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯发电厂用打火机的共同点：占地小， 解压缩比低， 隔栅空气当中加温，不易起动，移動车机电源线的可信赖。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起因素参数	实用输出(kW)Prime Power	自备电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
